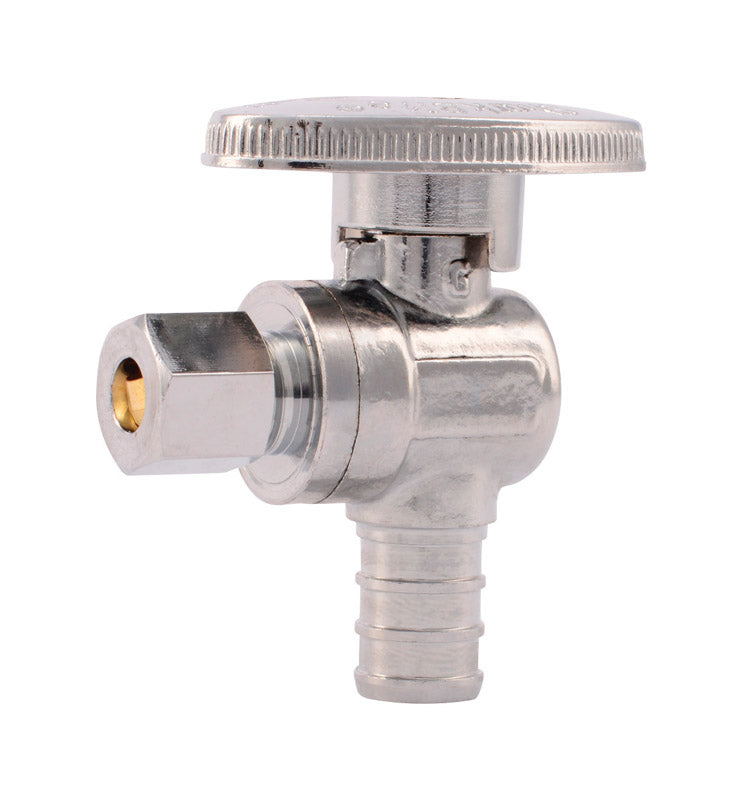

SharkBite 1/2 in. PEX Barb Compression Brass Quarter Turn Angle Stop Valve
SharkBite 1/2 in. PEX Barb Compression Brass Quarter Turn Angle Stop Valve
Couldn't load pickup availability
Overview
The SharkBite 1/2 in. Barb x 1/4 in. O.D. Compression Angle Stop Quarter-Turn Valve controls water flow to household plumbing fixtures. The Angle Stop Valve is used where the water pipe enters the room to allow for easy shut-off of water flow to the end fixture allowing for maintenance and repair without having to turn water off to the entire home. The SharkBite 1/4 in. Barb End can be connected to PEX Pipe using Copper Crimp Rings or Stainless Steel Clamps. The 1/4 in. Compression Outlet with the supplied ferrule and compression nut, can be used with 1/4 in. O.D. Pipe or 1/4 in. Supply Line. This valve is best suited for use on Icemakers, Humidifiers, Water Filtration Systems, Coffee Makers, and Swamp/Evaporative Coolers.
Specifications
| Brand Name | SharkBite |
| End 1 Size | 1/2 inch |
| End 1 Type | PEX Barb |
| End 2 Type | Compression |
| Finish | Chrome Plated |
| Material | Brass |
| Maximum Pressure | 200 pound per square inch |
| Maximum Temperature | 200 degree Fahrenheit |
| Packaging Type | Bagged |
| Turn Type | Quarter Turn |
