WAYNE WATER SYSTEMS

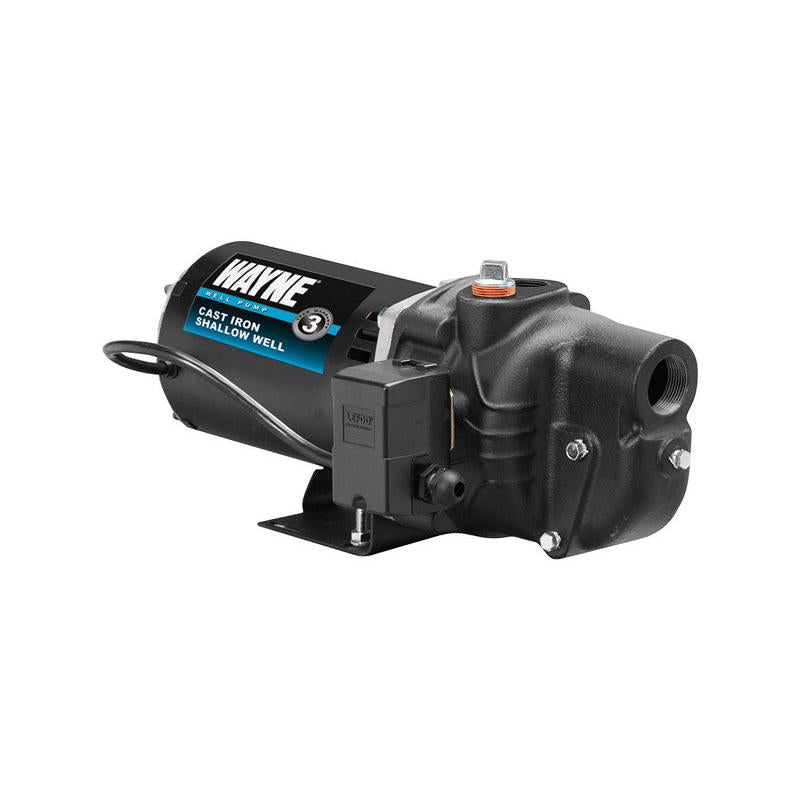

Wayne 1 HP 1084 gph Cast Iron Shallow Jet Well Pump
Wayne 1 HP 1084 gph Cast Iron Shallow Jet Well Pump
$389.99 USD
Sale
Sold out
Couldn't load pickup availability
Overview
Wayne pumps are durable, reliable and worry-free. The Wayne is a 1 HP durable, cast iron shallow well jet pump packaged with a comprehensive installation manual to help anyone build a safe and long-lasting well pump system. The has a dedicated priming port for volute filling.
Specifications
| Brand Name | Wayne |
| Corrosion Resistant | Yes |
| Depth | 22.30 inch |
| Height | 10.30 inch |
| Horsepower | 1 HP (horsepower) |
| Housing Material | Cast Iron |
| Maximum Discharge Flow | 1084 gph |
| Maximum Temperature | 103 degree Fahrenheit |
| Minimum Temperature | 33 degree Fahrenheit |
| Pump Switch Type | Pressure |
| Pump Type | Shallow Jet |
| Self Priming | Self-Priming |
| Volts | 240 volt |
| Width | 11.50 inch |
| With Tank | No |
| Powered By | AC |
| Discharge Pipe Size | 3/4 inch |
| Maximum Feet of Head | 25 foot |
| Agency Compliance | CSA |
