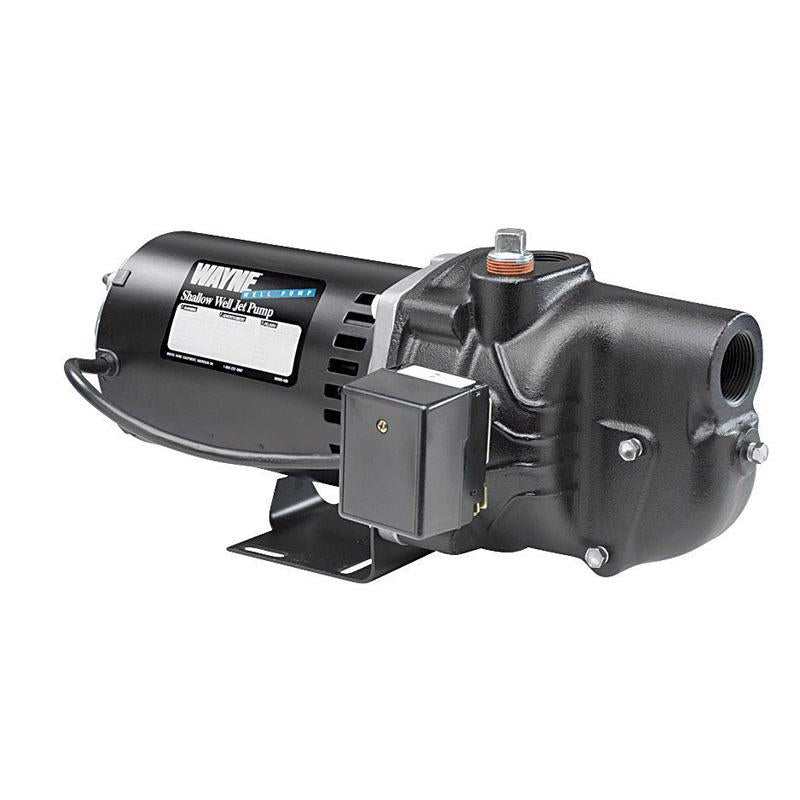

Wayne 1/2 HP 711 gph Cast Iron Shallow Jet Well Pump
Wayne 1/2 HP 711 gph Cast Iron Shallow Jet Well Pump
$309.99 USD
Sale
Sold out
Couldn't load pickup availability
Overview
The Wayne 1/2 HP cast iron shallow well jet pump features a high-efficiency square-flange motor that is thermally protected to help prevent overheating. The volute is constructed of durable cast iron, with a corrosion resistant, reinforced thermoplastic impeller and diffuser.
Specifications
| Brand Name | Wayne |
| Corrosion Resistant | Yes |
| Depth | 22.30 inch |
| Hardware included | YEs |
| Height | 10.30 inch |
| Horsepower | 1/2 HP (horsepower) |
| Housing Material | Cast Iron |
| Maximum Discharge Flow | 711 gph |
| Maximum Temperature | 110 degree Fahrenheit |
| Minimum Temperature | 40 degree Fahrenheit |
| Pump Switch Type | Pressure |
| Pump Type | Shallow Jet |
| Self Priming | Self-Priming |
| Volts | 240 volt |
| Width | 11.50 inch |
| With Tank | No |
| Powered By | Manual |
| Discharge Pipe Size | 1 inch |
| Maximum Feet of Head | 80 foot |
| Agency Compliance | CSA |
