Jackel 1/2 HP 6420 gph Cast Iron Tethered Float Switch Sewage System
Jackel 1/2 HP 6420 gph Cast Iron Tethered Float Switch Sewage System
$559.99 USD
Sale
Sold out
Couldn't load pickup availability
Overview

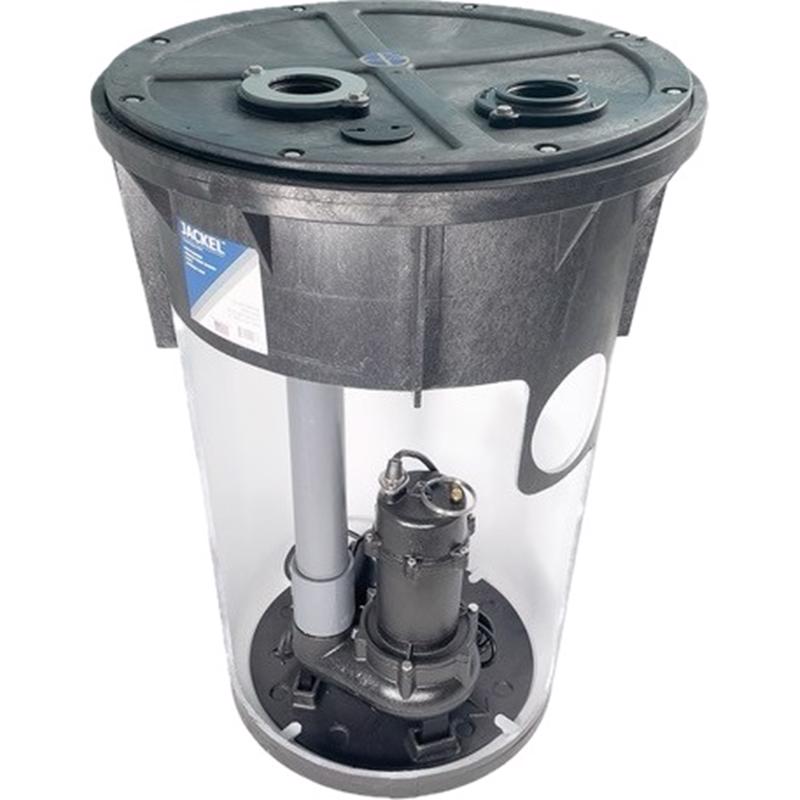

The Jackel 1/2 HP Submersible Pre-Plumbed Sewage Ejector Basin System comes fully pre-plumbed for easy installation. The system includes a 1/2 HP Sewage Pump that is capable of pumping up to 6,480 GPH. The pump comes secured to the basin with our unique torque plate. The pump is wrapped in our rugged 18x30 Sewage Basin with a reinforced bottom and topped off with our unique 18-inch. cover with 8 bolts to prevent unwanted access. Protecting the pump is our 2-inch full-flow sewage check valve.
Specifications
| Amps | 10 ampere |
| Brand Name | Jackel |
| Height | 31 inch |
| Horsepower | 1/2 HP (horsepower) |
| Housing Material | Cast Iron |
| Maximum Discharge Flow | 6420 gph |
| Maximum Temperature | 77 degree Fahrenheit |
| Pump Switch Type | Tethered Float Switch |
| Volts | 115 volt |
| Warranty | 1 Year |
| Powered By | AC |
| Discharge Pipe Size | 2 inch |
| Maximum Feet of Head | 18 foot |
| CSA Certified | No |
| Maximum Solids Diameter | 2 inch |
| Minimum Sump Pit Diameter | 18 inch |
| Turn On/Off Level | 15 in./7 in. |
| Intake Size | 2 inch |
