FRANKLIN ELECTRIC CO INC

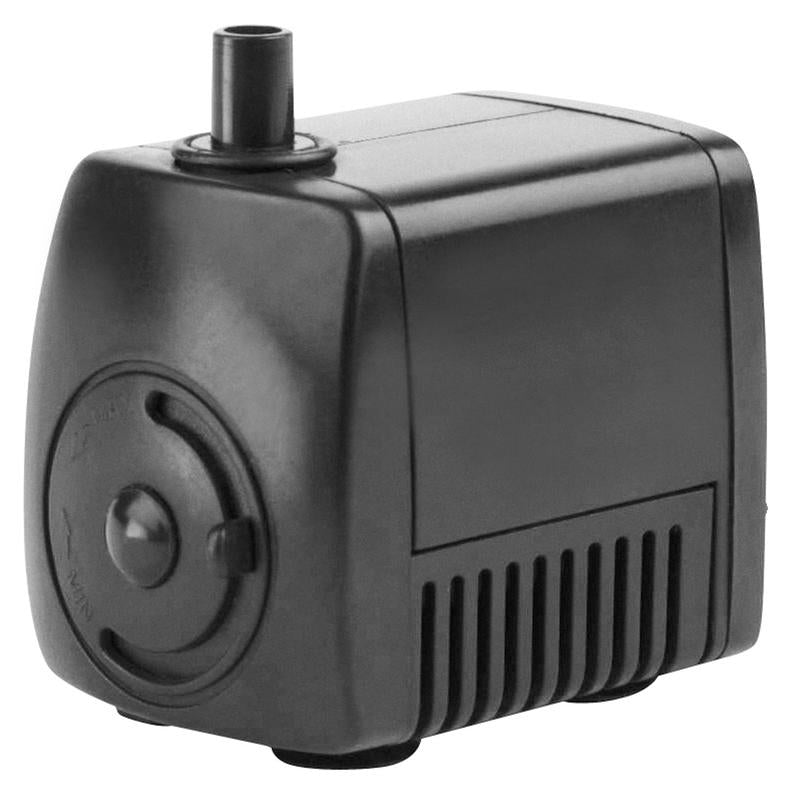

Little Giant PES Series 1/125 HP 80 gph Thermoplastic Switchless Switch Bottom AC Statuary Pump

Little Giant PES Series 1/125 HP 80 gph Thermoplastic Switchless Switch Bottom AC Statuary Pump

$44.99 USD
Sale

Overview

This wet-rotor pump, often referred to as a magnetic-drive pump by other manufacturers, utilizes an epoxy-encapsulated motor and plastic housing. A permanent magnet is attached to the impeller. The magnet acts as the rotor would in a conventional motor. The water being pumped surrounds the rotor, thus the term ''wet-rotor''. It is seal-less and oil-less. This pump works well in water garden, statuary and some industrial applications. It is compact in design and is the most energy efficient type of pump Little Giant manufactures. The other side of this efficiency is very little starting torque. Therefore, the pump does not produce as much pressure and will not pump water as high as its epoxy-encapsulated counterpart.

Specifications

Amps 0.14 ampere
Brand Name Little Giant
Corrosion Resistant Yes
Depth 1.9 inch
Hardware included No
Height 3 inch
Horsepower 1/125 HP (horsepower)
Housing Material Thermoplastic
Maximum Discharge Flow 80 gph
Maximum Temperature 120 degree Fahrenheit
Minimum Temperature 33 degree Fahrenheit
Pump Switch Type Switchless Switch
Self Priming Self-Priming
Sub Brand PES Series
Volts 115 volt
Warranty 1 Year
Width 2.8 inch
Powered By AC
Discharge Pipe Size 0.5 inch
Maximum Feet of Head 3.5 foot
Intake Bottom
Agency Compliance UL
On/Off Operations Manual
