WAYNE WATER SYSTEMS

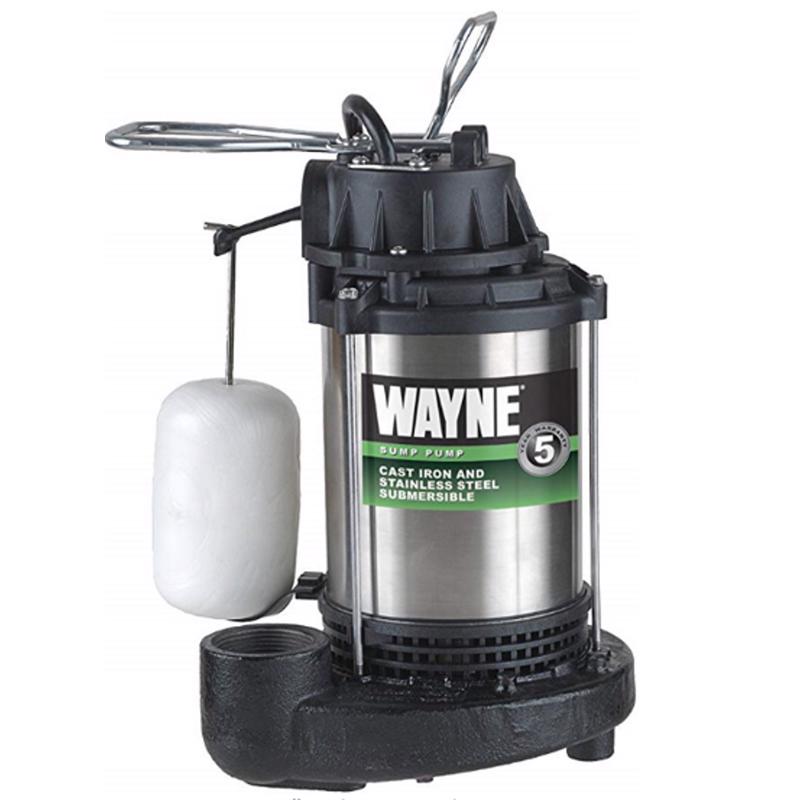

Wayne 1/2 HP 5100 gph Stainless Steel Vertical Float Switch AC Sump Pump 8 ft.

Wayne 1/2 HP 5100 gph Stainless Steel Vertical Float Switch AC Sump Pump 8 ft.

$239.99 USD
Sale

Overview

Tested to 1 million cycles; For performance that lasts, Wayne Pumps exceeds an average life of 1 million cycles. Wayne Pumps' energy-efficient motors and engineered design provide the ultra-quiet experience you won't believe. Durable epoxy-coated and rugged cast iron construction, for long life in tough sump pump applications. High performance; max. flow rate is 5100 gallons per hour; 3840 GPH at 10 ft. of discharge lift. Integrated vertical float switch with solid, leak free polypropylene float for automatic operation; 9 in. On level and 4 in. Off level. No need for weep holes; unique top suction design reduces clogging and prevents air lock condition. Engineered with upper and lower ball bearings, in sealed oil bath, for virtually silent operation. Designed with premium john crane carbon/ceramic shaft seals for quality that lasts.

Specifications

Amps 3.8 ampere
Brand Name Wayne
Depth 10 inch
Diameter 12 inch
Height 14 inch
Horsepower 1/2 HP (horsepower)
Housing Material Stainless Steel
Maximum Discharge Flow 5100 gph
Maximum Temperature 77 degree Fahrenheit
Minimum Temperature 33 degree Fahrenheit
Pump Switch Type Vertical Float Switch
Sump Pump Outlet Diameter 1-1/2 inch
Volts 120 volt
Width 10 inch
Powered By AC
Maximum Feet of Head 20 foot
Intake Top Suction
Agency Compliance CSA and UL
Discharge Flow at 10 ft. 3840 gph
Discharge Flow at 20 ft. 2040 gph
Discharge Flow at 25 ft. 3000 gph
Turn On/Off Level 9 in./4 in.
