WAYNE WATER SYSTEMS

Blue Angel 1/2 HP 10980 gph Cast Iron Vertical Float Switch Sewage Pump

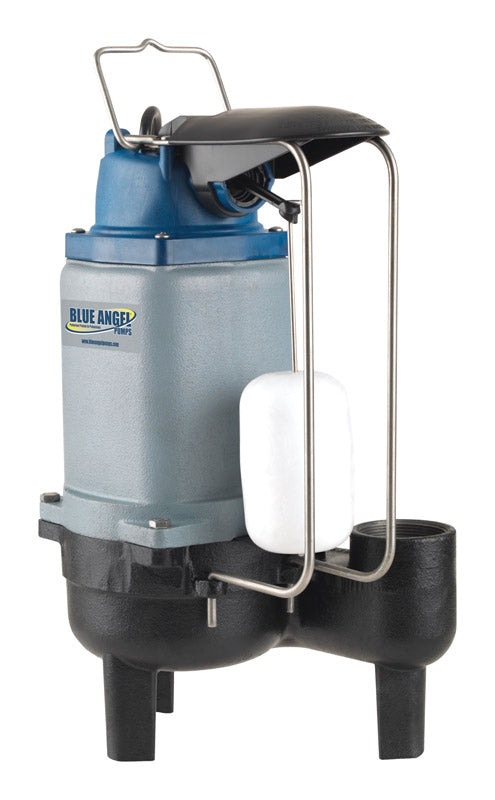

Blue Angel 1/2 HP 10980 gph Cast Iron Vertical Float Switch Sewage Pump

$489.99 USD
Sale

Overview

The F50SW is our commercial grade submersible vertical float sewage pump. This cast iron housing and volute is made for those tough sewage applications and can pass up to 2 in. solids in diameter. Stainless steel shaft and fasteners for reliability long term in tough sewage applications. Heavy duty upper and lower ball bearings for long life and quiet operation. Corrosion resistant thermoplastic engineered flow diverter for switch protection. 2 in. NPT discharge Capable of handling 2 in. solids. Glass reinforced impeller for long lasting reliability. 20 Ft. SJTW power cord is oil and water resistant with Neoprene grommet for superior seal. For use in 18 in. diameter or larger sewage basins.

Specifications

Amps 12 ampere
Brand Name Blue Angel
Height 17 inch
Horsepower 1/2 HP (horsepower)
Housing Material Cast Iron
Maximum Discharge Flow 10980 gph
Maximum Temperature 110 degree Fahrenheit
Minimum Temperature 32 degree Fahrenheit
Pump Switch Type Vertical Float Switch
Volts 120 volt
Warranty 3 Year
Width 10.63 inch
Powered By AC
Discharge Pipe Size 2 inch
Maximum Feet of Head 18 foot
CSA Certified Yes
Maximum Solids Diameter 2 inch
Minimum Sump Pit Diameter 14 inch
Turn On/Off Level 13 in./8 in.
Intake Size 2 inch
