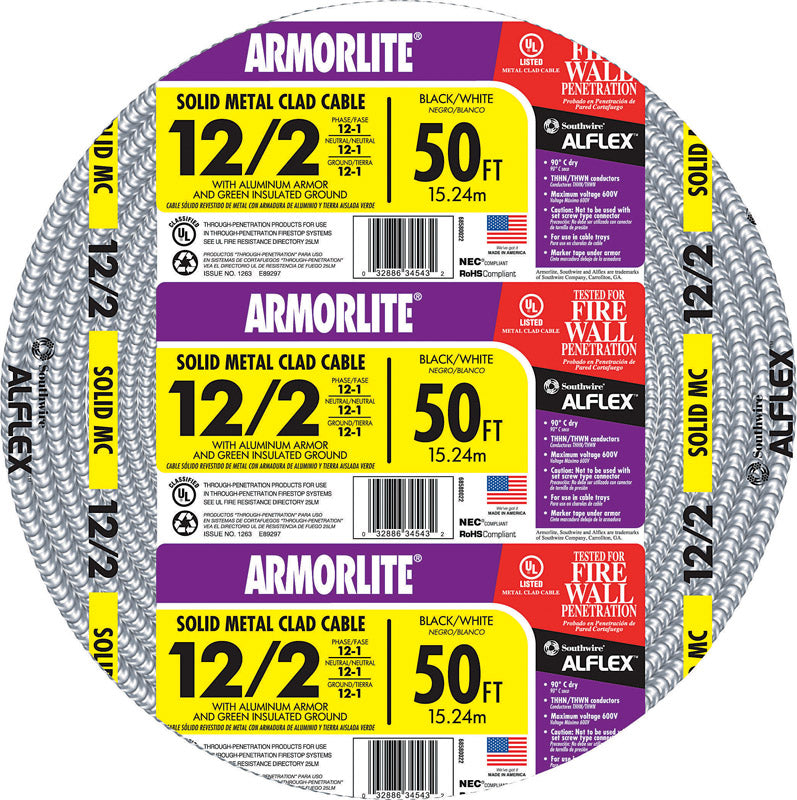

Southwire 50 ft. 12/2 Solid Aluminum Armored MC Cable
Southwire 50 ft. 12/2 Solid Aluminum Armored MC Cable
$69.99 USD
Sale
Sold out
Couldn't load pickup availability
Overview
Pre installed conductors within an overall protective metallic interlocked armor. 45 percent lighter than steel MC cable. Cable reverse wound for ease of pulling and installation. Conductors solid bare annealed copper per ASTM B-3, stranded copper stranding per ASTM B-8 for conductor. Conductor insulation rated 90 degree Celsius dry, 75 degree Celsius wet at 600 volt. Conductor insulation is flame retardant, heat resistant PVC with flame, oil and gasoline resistant nylon jacket.
Specifications
| Amp Rating | 20 ampere |
| Brand Name | Southwire |
| Cable or Wire Type | Aluminum Armored MC |
| Color | Black/Green/White |
| Conductor Gauge | 12 Gauge |
| Conductor Material | Copper |
| Direct Burial | Yes |
| Flame Retardant | Yes |
| Ground Material | Aluminum |
| Jacket Material | Aluminum |
| Number of Conductors | 2 |
| Stranded or Solid | Solid |
| Temperature Rating | 90 degree Fahrenheit |
| UL Listed | Yes |
| Voltage Rating | 600 volt |
| Wet Location Use | Yes |
| Wire Length | 50 foot |
| Gauge/Conductors | 12/2 |
| Indoor or Outdoor | Indoor |
| Sunlight/UV Resistant | Yes |
