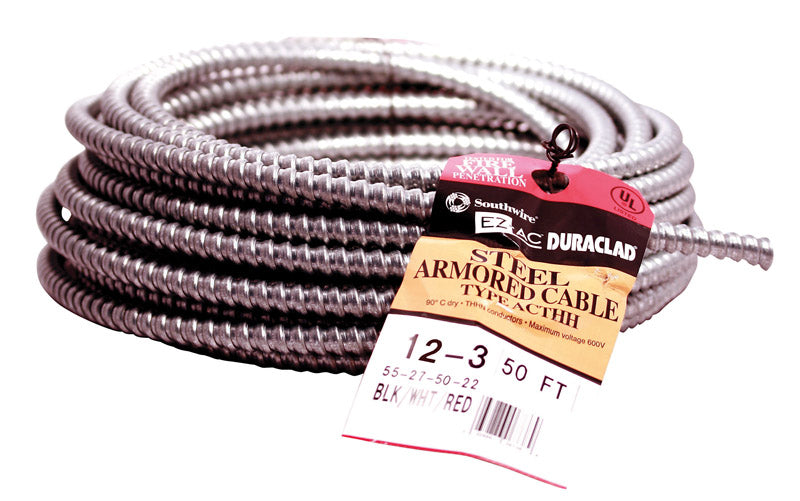

Southwire Duraclad 50 ft. 12/3 Solid Steel Armored AC Cable
Southwire Duraclad 50 ft. 12/3 Solid Steel Armored AC Cable
$89.99 USD
Sale
Sold out
Couldn't load pickup availability
Overview
AC 90 steel armored cable is black striped color coded. Copper conductors are THHN 90 degree Celsius rated. 16AWG internal bonding wire and the outer armor form the grounding path. Anti short bushings included. Permitted for branch circuits and feeders on both exposed and concealed work. Dry locations only. Due to the fluctuation of the copper market, reserves the right to bill at the prices prevailing on date of shipment.
Specifications
| Amp Rating | 20 ampere |
| Brand Name | Southwire |
| Cable or Wire Type | Steel Armored AC |
| Color | Black/Red/White |
| Conductor Gauge | 12 Gauge |
| Conductor Material | Copper |
| Direct Burial | Yes |
| Flame Retardant | Yes |
| Ground Material | Steel |
| Jacket Material | Steel |
| Number of Conductors | 3 |
| Stranded or Solid | Solid |
| Sub Brand | Duraclad |
| Temperature Rating | 90 |
| UL Listed | Yes |
| Voltage Rating | 600 volt |
| Wet Location Use | No |
| Wire Length | 50 foot |
| Gauge/Conductors | 12/3 |
| Indoor or Outdoor | Indoor |
